ON-TARGETplus siRNA for gene silencing

Our emails have transitioned to the Revvity.com domain, however our billing information is unchanged. Click for details.

ON-TARGETplus siRNA

siRNA designed and modified for greater specificity

siRNA designed for higher specificity and reliable gene silencing, featuring patented chemistries that reduce off‑target activity. Available as single siRNA or in SMARTpool™ format for human, mouse, or rat.
Guaranteed gene silencing
Patented modifications to reduce off-targets
Available as individual siRNA or in SMARTpool™ format – for human, mouse or rat

ON-TARGETplus siRNA

1Start Here

Knockdown your target gene function with confidence

The patented modification pattern for specificity, combined with the SMARTselection algorithm for efficient, guaranteed target gene silencing, makes Dharmacon ON-TARGETplus siRNA the premium choice for optimal knockdown and reduced off-targets.

Available as pre-designed, genome-wide reagents for human, mouse and rat.

For the most up-to-date designs explore ON-TARGETplus 2.0 siRNA with continuous transcriptome alignment to maximize specificity and transcript isoform coverage
Off-targets reduced by up to 90% compared to unmodified siRNA
Guaranteed silencing with our SMARTpool™ format and 3 of 4 individual siRNAs (see Guarantee tab)
Sequence information provided with siRNA purchase

ON-TARGETplus technology

A two-stranded mechanism requires a two-stranded solution.

Dharmacon scientists and collaborators demonstrated in 2006 (see Reference 1) that siRNA off-targets are mediated by antisense seed-region interactions, initiating the development of a dual-strand modification pattern:

Sense strand is modified to prevent interaction with RISC and favor antisense strand uptake
Antisense strand seed region is modified to destabilize off-target activity and enhance target specificity

Seed-region analysis on siRNA designs reduces miRNA-induced off-targets

A landmark publication (see Reference 2) from the Dharmacon research group was the first to experimentally demonstrate the key role of the seed region in mediating off-targets. A subsequent 2008 paper (see Reference 3) showed the importance of seed frequency in the 3' UTR as an indicator of its likelihood to cause off-targets. These principles were subsequently applied to our siRNA designs to improve specificity:

Design filters eliminate common seed regions likely to cause miRNA-like off-targets
Seed frequency analysis for siRNA designs minimize off-target effects

Product formats

SMARTpool: A mixture of 4 siRNA provided as a single reagent; providing advantages in both potency and specificity.
Set of 4: A convenient option for purchasing aliquots of all 4 individual siRNAs targeting a single gene.
Individual siRNAs: For the most precise knockdown of specific transcript isoforms

Components for an RNAi experiment using synthetic siRNA

ON-TARGETplus siRNA
Appropriate positive and non-targeting controls
DharmaFECT transfection reagent or electroporation for delivery
siRNA buffer and/or RNase-free water for resuspension of siRNA.

Note: You can order guide RNA above, with the option to add any of these additional components directly to your cart.

Order quantity guidelines

ON-TARGETplus reagents are routinely used at 5 to 25 nM concentration. The calculations below, based on 25 nM, are for estimation purposes only and assume no loss from pipetting.

	Approximate # reactions (wells) at 25 nM siRNA concentration
nmol	96-well plate (100 µL total reaction volume)	24-well plate (500 µL total reaction volume)	12-well plate (1000 µL total reaction volume)
1	400	80	40
2	800	160	80
5	2000	400	200
10	4000	800	400
20	8000	1600	800

Custom siRNA design

Design and order custom siRNA sequences using our siDESIGN center.

Complete your knockout experiment by adding these supporting reagents to your order

ON-TARGETplus siRNA controls

Validated positive controls and non-targeting negative controls utilizing patented modifications for optimal specificity. Available as pools or single siRNAs. On-TARGETplus control siRNAs and pools are produced with the patented ON-TARGETplus modification pattern for optimal specificity. They are recommended as controls for any siRNA experiment due to their minimized off-target effects.

Our panel of non-targeting controls permits assessment of potential non-specific effects, to find the optimal negative control for your cell type, and your assay. Pooled siRNA controls are recommended for further reduction of off-targets, and for use with SMARTpool siRNA reagents.

Select a species-specific positive control to silence an expressed housekeeping gene in your experimental cell type.

ON-TARGETplus Positive Control Reagents	Species	Catalog Number
ON-TARGETplus Cyclophilin B Control siRNA	Human	D-001820-01
	Mouse	D-001820-02
	Rat	D-001820-03
ON-TARGETplus Cyclophilin B Control Pool	Human	D-001820-10
	Mouse	D-001820-20
	Rat	D-001820-30
ON-TARGETplus GAPD Control siRNA	Human	D-001830-01
	Mouse	D-001830-02
	Rat	D-001830-03
ON-TARGETplus GAPD Control Pool	Human	D-001830-10
	Mouse	D-001830-20
	Rat	D-001830-30
ON-TARGETplus Negative Control Reagents	Species	Catalog Number
ON-TARGETplus Non-targeting siRNAs	Human, Mouse, Rat	D-001810-0X
ON-TARGETplus Non-targeting Pool	Human, Mouse, Rat	D-001810-10

Transfection reagents

DharmaFECT transfection reagents are optimized for improved delivery and reduced toxicity. The optimal DharmaFECT reagent for your experiment will depend on your Cas9 nuclease source and your cell type.

Order quantity guidelines

ON-TARGETplus reagents are routinely used at 5 to 25 nM concentration. The calculations below, based on 25 nM, are for estimation purposes only and assume no loss from pipetting.

	Approximate # reactions (wells) at 25nM siRNA concentration
nmol	96-well plate (100 µL total reaction volume)	24-well plate (500 µL total reaction volume)	12-well plate (1000 µL total reaction volume)
1	400	80	40
2	800	160	80
5	2000	400	200
10	4000	800	400
20	8000	1600	800

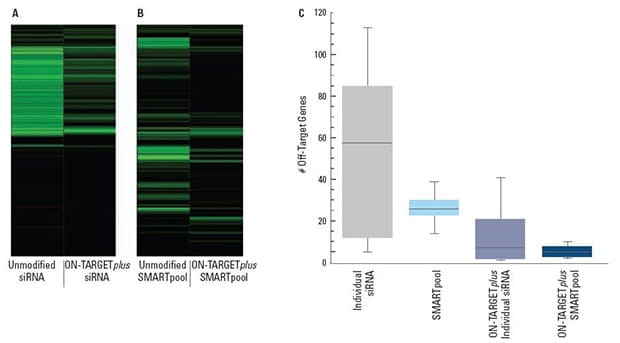

ON-TARGETplus modifications reduce the overall number of off-targets and pooling reduces them even further

Panels (A) and (B) are representative examples of off-target signatures with and without application of ON-TARGETplus modifications to (A) a single siRNA and (B) a SMARTpool reagent. Green bars indicate genes with 2-fold or more reduction of expression when treated with the indicated siRNA reagent.The ON-TARGETplus modifications reduced the off-targets when compared to unmodified siRNA. Pooling of siRNA and the ON-TARGETplus modification pattern independently, and in combination, provide significant reduction in off-target gene silencing. Panel (C) represents quantitation of off-targets (down-regulated by 2-fold or more) induced by the indicated siRNA reagents targeting 10 different genes (4 siRNAs per gene or a single SMARTpool reagent). Off-targets were quantified using microarray analysis (Agilent) then compiled. Each shaded box represents the middle 50% of the data set. Horizontal line in box: Median value of the data set. Vertical bars: minimum and maximum data values.

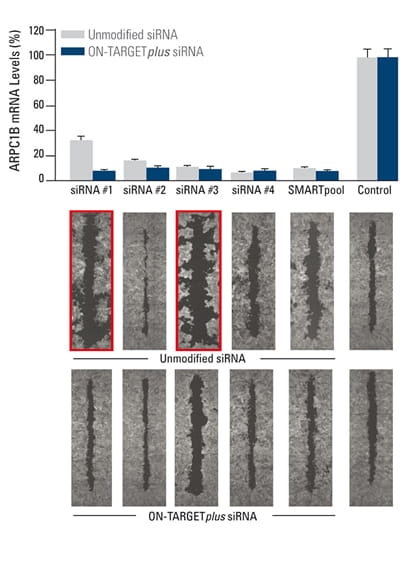

False phenotypes due to off-targets are alleviated by ON-TARGETplus SMARTpool reagents while target gene knockdown is maintained

The effect of silencing ARPC1B on cell migration was studied in a breast cancer cell line. A monolayer of cells was uniformly scraped and the rate of cell migration to close the scrape (wound healing) was evaluated. Both unmodified and ON-TARGETplus siRNA reagents induced potent target knockdown. Inconsistent phenotypes due to off-target effects (red outline), were observed for cells transfected with unmodified individual siRNAs. The unmodified SMARTpool improved the false phenotype considerably, while the ON-TARGETplus SMARTpool significantly reduced off-target effects to produce a consistent phenotype.

In collaboration with Kaylene Simpson, Laura Selfors, and Joan Brugge, Harvard Medical School.

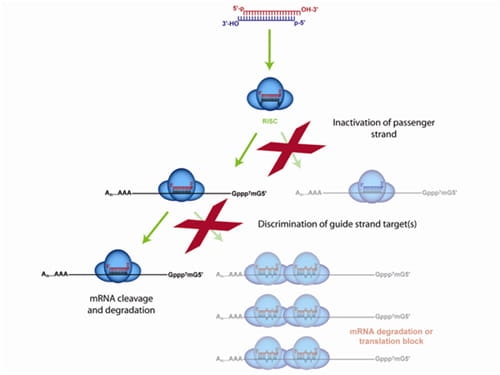

Only the ON-TARGETplus modification pattern addresses both siRNA strands for premium silencing

The ON-TARGETplus dual-strand chemical modification begins with the sense (passenger) strand being blocked from RISC uptake to favor antisense (guide) strand loading and reduce passenger strand-induced off-targets. However, the majority of siRNA off-targets are driven by the seed region of the guide strand. ON-TARGETplus is modified within its seed region to destabilize miRNA-like activity and improve specificity to the desired target for potent knockdown.

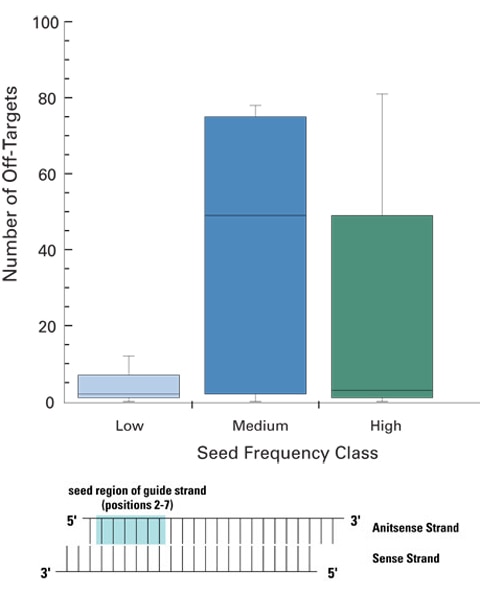

siRNA designs with low-frequency seed regions ensure fewer off-targets

ON-TARGETplus siRNA designs leverage sophisticated bioinformatics to reduce the likelihood of miRNA-like off-targets from high-frequency or highly conserved miRNA seed regions. siRNAs with low seed frequency have a significantly lower number of off-targets than siRNAs with medium or high frequency seeds. Five siRNAs with low, medium, or high frequency seed regions were transfected into HeLa cells and their associated off-target signatures assessed via global expression profiling (Agilent 22K platform). siRNA sequences were constant at positions 1 and 8-19, only the seed regions (positions 2-7) were altered.

Low frequency seeds: < 350 occurrences in the HeLa transcriptome

Medium frequency: 2500-2800 occurrences

High frequency: >3800 occurrences

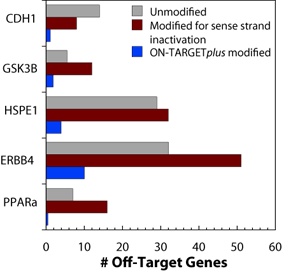

ON-TARGETplus siRNA dual-strand modification pattern reduces off-targets

Off-target effects have been shown to be primarily driven by antisense strand seed activity. Therefore, sense strand inactivation alone does not decrease the total number of off-target genes.

ON-TARGETplus modifications account for both strands:

Sense strand is modified to prevent interaction with RISC and favor antisense strand uptake
Antisense strand seed region is modified to minimize seed-related off-targeting

The ON-TARGETplus modification pattern dramatically reduces off-targets. Off-target effects induced by the indicated siRNAs were quantified using microarray analysis. For each target, three different siRNAs were used: unmodified, sense strand-inactivated, and ON-TARGETplus-modified. Data shown represents genes down-regulated by two-fold or more. HEK293 cells were transfected with 100 nM siRNA using 0.2 μL of DharmaFECT 1. Data was analyzed at 24 hours.
